BIOFREE Free Movement Analysis System

Welcome to the Democratization of Biomechanical Movement Analysis


Biomechanics

icono

Portable

icono

Accurate

icono

Inexpensive

icono

Easy to install

icono

Reference Values

icono

Does not require installation works

icono

Adaptable to small spaces

icono

Data easy to read and understand

icono

Intuitive graphic representation

BIOFREE

Biogait
WHAT IS BIOFREE?

BioFree is a markerless motion capture system that allows:
• Capture and Evaluate any gesture of the human body in the Sports, Clinical, Ergonomics and Research fields.
• Calculate angles, velocities, accelerations and joint positions.
• Record the same movement from 2 planes simultaneously.
• Compare 2 videos with CROSSFADE: ideal to evaluate the same gesture of 2 athletes, or the same athlete before and after a technique correction or treatment.


HOW DOES BIOFREE WORK?

Taking advantage of Artificial Intelligence and neural networks we have created a system that allows us to recognize the human body in motion, in small spaces, indoors and outdoors to calculate its joint centers and consequently export the data for processing.

WHAT IS THE PURPOSE OF BIOFREE?

To Democratize the capture and analysis of movement in the world, facilitating its access for any company or institution, since historically access to these data has been limited because they have been taken with complex, large and expensive Biomechanics Laboratories.

motion capture

CONVENTIONAL TECHNOLOGY
motion capture
BIOFREE
ciclismo Bogotá

Markerless Technology
The joint centers are located by means of artificial intelligence based on the patient's movement.


motion capture

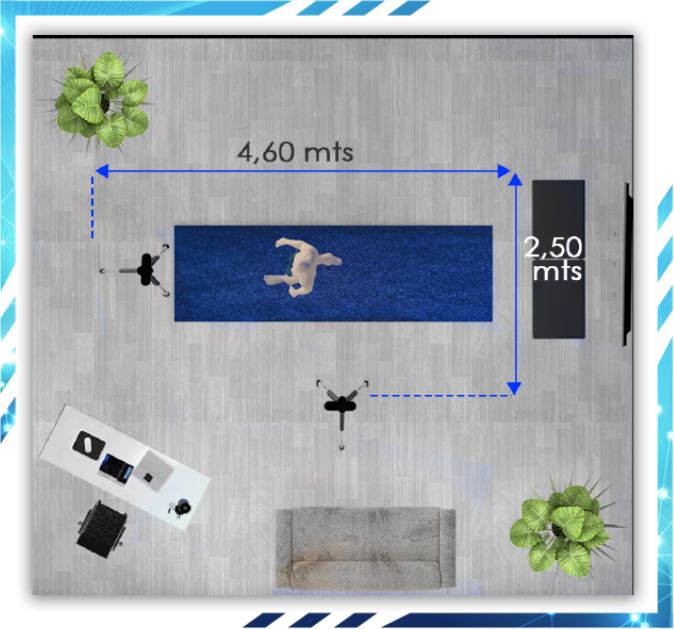

BioFree requires a minimum space of 4.60 x 2.50 meters of free area and can be located in an consulting room, or rehabilitation area with no particular lighting or electricity requirements.

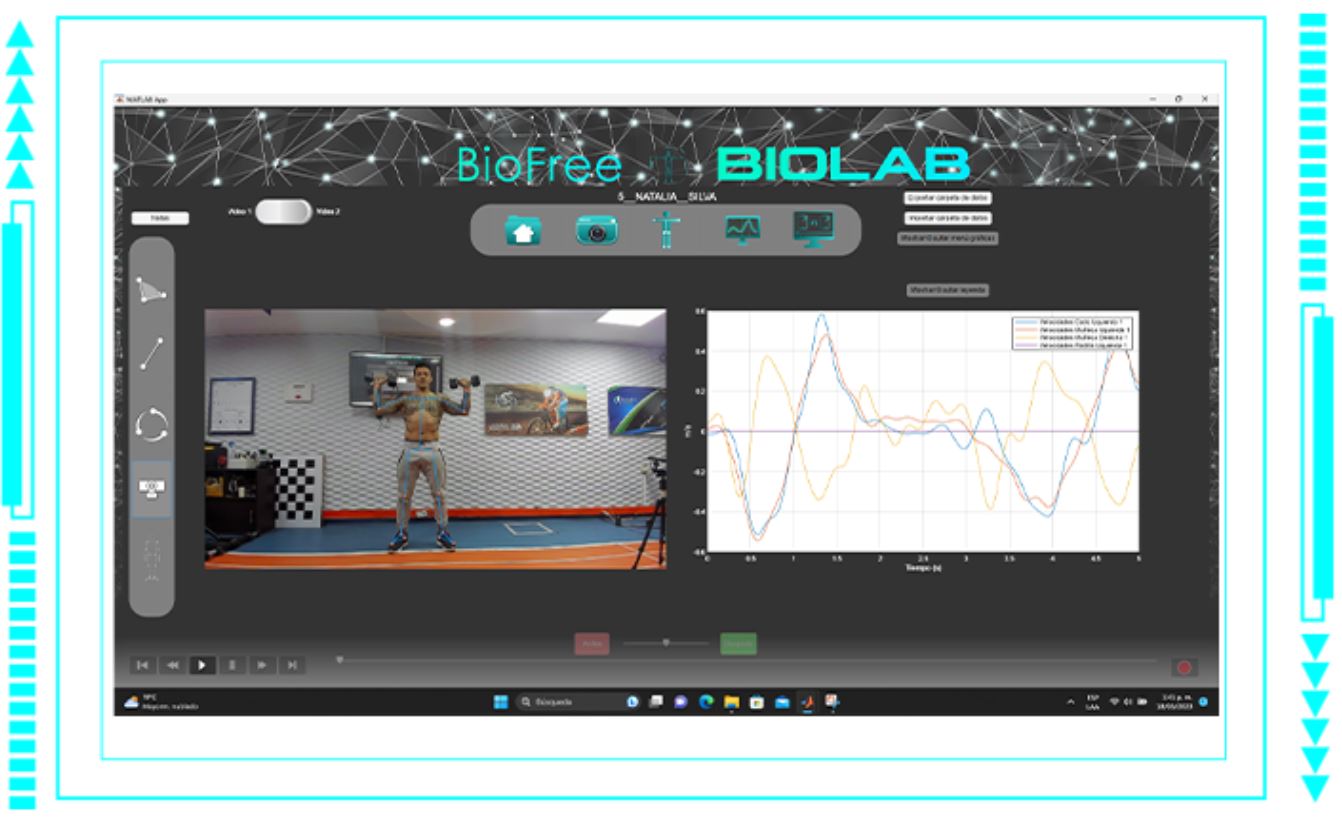

BIOFREE INTERFACE

motion capture

motion capture

motion capture

motion capture

Note: Being a software of measurements and free movements, BioFree does not have specific gesture protocols, for this we have available the cyclic gesture modules: BioRun (Running), BioBike (Cycling), BioGait (Gait) y BioPosture (Posture).


MINIMUM TECHNICAL SPECIFICATIONS REQUIRED

*EQUIPMENT IS NOT INCLUDED IN THE PRICE OF THIS QUOTATION*


LABORATORIO DE BIOMECANICA 3D
2 Logitech Brio 4K HD Cameras & 2 Tripods

The camera must be only: Logitech Brio 4K HD.
Easily find on Amazon.com or computer stores.
4K / 30fps, 1080p /60fps, 720p/90fps.
Autofocus.
Connectivity: USB-A plug-and-play.
Rightlight 3HR Automatic adjustment adaptable to any lighting environment from low light, direct sunlight or high contrast.
5x HD zoom.
High Dynamic Range (HDR) technology.

LABORATORIO DE BIOMECANICA 3D
Technical Specifications Computer:

Type: CPU or Laptop.
Operating System: Windows 10 or 11 at 64 Bits.
Ram Memory: 8 GB and up.
Hard Disk: Minimum 256GB.
Processor: Intel i5 , i7 , i9 o AMD Ryzen 5 , 7 or 9. Gaphics Card: Must be Geforce Nvidia brand, in any of the following references:
Series 16: GTX 1650, GTX 1660 Series 20: RTX 2060, RTX 2070, RTX 2080 Series 30: RTX 3050, RTX 3060, RTX 3070, RTX 3080, RTX 3090


Information for International Sales

TERM OF SOFTWARE LICENSES

All licenses are perpetual, there is no price to maintain them, if there will be upgrades at very low values with respect to the main license, (price to be defined according to the upgrade level) but in case the customer does not wish to upgrade, the software will continue to run perpetually in the version that has been purchased.

SUPPORT AND WARRANTY

Support and Warranty of 2 years from the installation of the equipment. COVERS hardware and software manufacturing defects. DOES NOT COVER damages caused by misuse, accidents or theft of the equipment.
Support will be provided by phone and remotely on a case-by-case basis for 2 years. After year 2 an annual support extension contract fee will be agreed upon.


TRAINING

The training is included in the price, it is virtual from our headquarters in Bogota and includes: operation in Bogota and includes: handling of the equipment, software, care, calibration and various calibration and various recommendations.

If the client wishes installation and personalized training outside Colombia, it has a value of U$900 usd + all travel expenses, for 2 days, from + all travel expenses, for 2 days, from Bogota to the client's destination.

It does not include academic training in Biomechanis principles. For this, we offer customized Biomechanis, Bikefitting, Running Analysis, Gait and Posture Courses according to the user's level of knowledge. Please contact us for topics and prices.

DELIVERY TIME

2 working days from the date of payment.

TERMS OF NEGOTIATION

EX WORKS: Shipping and taxes in the final customer's country of destination are excluded from the quotation. To save hardware shipping costs we suggest the customer to get the cameras and computer in his country, with the exact technical characteristics as mentioned in this catalog and we would sell the software licenses.
